Fotodiox Macro Extension Tube Set for Fujifilm Fuji X-Series Mirrorless Cameras for Extreme Close-up Photography


UPC: 847372023776


Have a question about this product?
My email address is correct


Product Highlights:

  • • Any combination of tubes can be used for various reproduction ratios
  • • No optical insert - maintains lens optical quality while remaining lightweight
  • • Extension tubes are designed to enable a lens to focus closer than normal

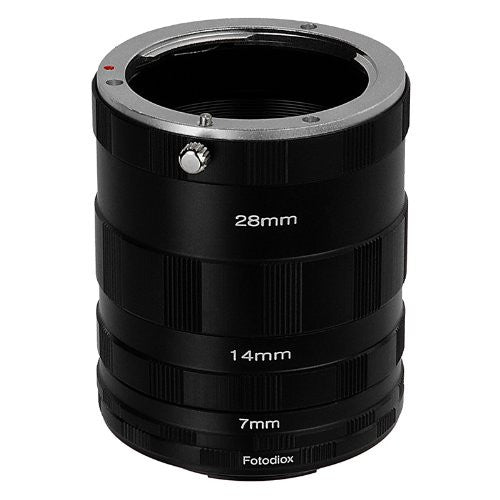

  • • Includes: camera & lens mounts, 7mm, 14mm and 28mm tube sections
  • Limited 2-Year Manufacturer Warranty

  • Fotodiox Macro Extension Tubes are a wonderful substitution for expensive macro lenses, enabling you to convert almost any lens into a macro lens at a fraction of the cost while maintaining its original optical quality. By placing distance between your camera body and lens, focusing distance is shortened and the magnifying effect of your subject is created. Macro tubes increase the lens-to-sensor distance, allowing for closer focusing than what is normally allowed by the lens itself. The greater the length of the extension tube, the closer the lens can focus. This means you can now get macro performance without needing to switch to a specialized lens and you will retain all the normal benefits of your optic when the macro function is not in use.

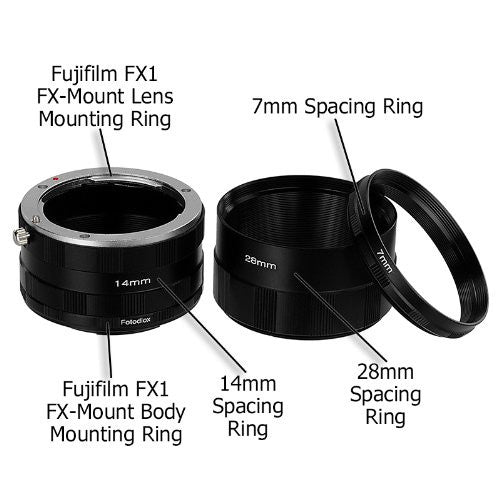

    The camera mount coupling adapter and lens mount coupling adapter can be used independently of the extension tubes or you can add in the tubes for extreme macro photography. Because no other optical components are added with this kit, the image preserves the original optical properties of the lens. This is an affordable and simple way to turn your existing lens into an inexpensive macro lens. This tube set includes a lens-coupling ring and a body-coupling ring; three extension tubes of various sizes are also included to build up to the desired magnification. Life size image can be achieved with this set up.

    Back to Highlights

    Extension Tubes Overview ¹

    An extension tube is simply a hollow cylinder that fits in between your camera and lens, causing the lens to move farther from the sensor. This additional distance allows your lens to focus more closely, which in turn provides more magnification capability. Unlike most lens accessories, extension tubes don't add any extra optics, and are therefore relatively inexpensive, simple devices.

    diagram of subject magnification versus lens extension
    Choose a Magnification: 1:2 (0.5X) 1:1 (1.0X)
    Note: Diagram assumes that the lens is symmetric (pupil magnification = 1)

    An extension tube increases lens magnification by an amount equal to the extension distance divided by the lens focal length. For example, adding a 25 mm extension tube to a 50 mm lens will give a magnification gain of 0.5X. Therefore, if the lens's original magnification was 0.15X, then the new magnification will be 0.15X+0.5X=0.65X. The closest focusing distance will also decrease to ~210 mm.

    quarter macro with 50 mm lens
    quarter macro with 25 mm extension tube
    0.15X Max Magnification
    with typical 50 mm lens
    0.65X Max Magnification
    after 25 mm extension tube
    Note: Shown using a full frame camera and a Canon EF 50 mm f/1.4 lens

    All camera lenses have some amount of native extension, which is used to focus on everyday objects. Lenses with closer focusing distances usually have more native extension, but these will also benefit less from extension tubes. Try experimenting with different lenses to see how extension affects magnification.

    Material Hardened Anodized Aluminum
    Lens Mount Fuji X-Series Mount MILC Lens
    Body Mount Fuji X-Series Mount MILC Body
    Tube Sizes
  • • 7mm
  • • 14mm
  • • 28mm
  • • 15mm (mounts only)
  • Product Dimensions 2.7 x 2.4 x 2.5 in (6.9 x 6 x 6.4 cm)
    0.2 lb (3.6 oz)
    Shipping Dimensions 4 x 4 x 4 in (10.2 x 10.2 x 10.2 cm)
    0.4 lb (6 oz)
    Manufacturer Fotodiox Inc.
    Warranty Limited 24-Months


  • • Extension tubes work best with short to medium focal lengths, they are less effective with telephoto lenses
  • • Extra magnification also magnifies camera shake as well as the subject, tripod use is recommended
  • • Be sure to use the smallest aperture (largest number) on your lens to give you adequate depth-of-field for better quality images
  • • Each ring brings you closer to the subject as you increase the distance between lens and camera
  • • Different lens lengths will require a different distance to be used from the subject, if the subject is not in focus move the camera closer or further from the subject until the subject comes into focus
  • • The effectiveness of extension tubes decreases as focal length increases. You will need to be careful when working with extreme wide-angle lenses as the focusing distance required may be closer to the lens than physically possible (ie you'd hit the front lens element before you achieve focus).

  • For More information on Macro Extension Tube usage and calculations, please check the links below:

  • • ¹ Macro Extension Tubes & Close-Up Lenses - Cambridge In Colour
  • The Ultimate Guide to Extension Tubes - Shutter Muse

    All pictures are for illustration purposes only. Actual product may vary slightly due to ongoing improvements in design.
