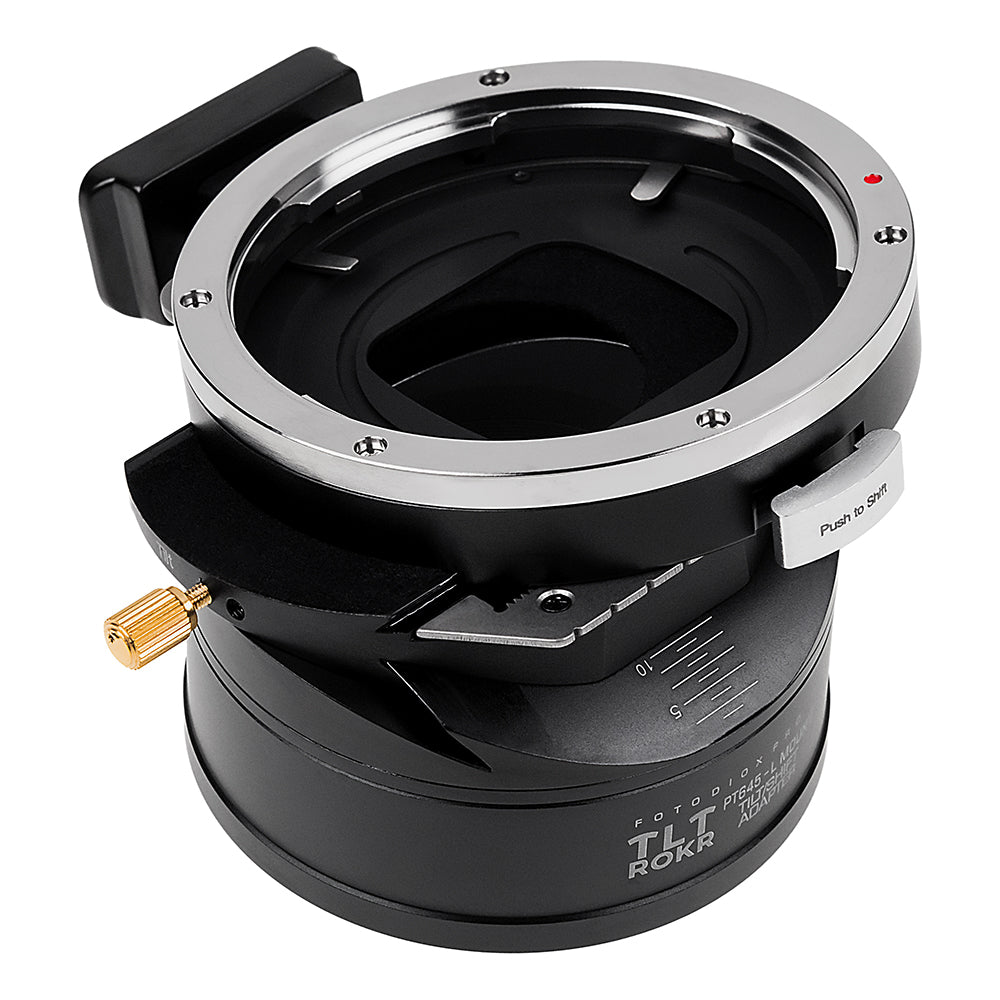

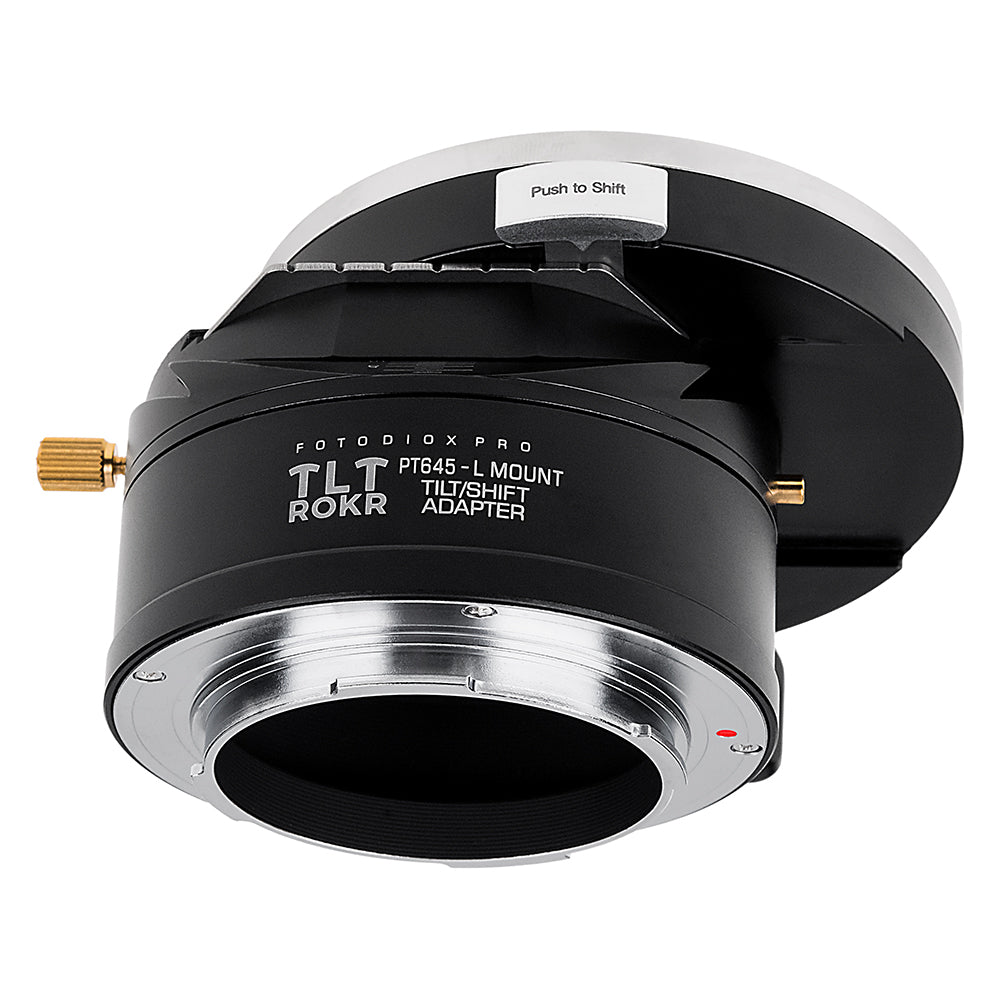

Tilt / Shift Adapter - Pentax 645 Lens to L-Mount Alliance Cameras

Product Highlights:

• • Mounts a Vast Range of Vintage Workhorse Lenses to Modern Digital Cameras
• • Built-In 10 Degrees of Off-Axis Tilt Ability, 20mm of Side to Side Shift with 360° of Rotation
• • All Metal, High-Tolerance Construction for Demanding Professionals
• • Precise, Secure Fit, No Play, Gap or Wiggling with No Adjustments Required
• • Limited 2-Year Manufacturer Warranty

Mount Vintage Lenses to Digital Cameras

Use a TLT ROKR adapter to mount vintage workhorse lenses to modern mirrorless camera bodies with the added benefit of distortion control. The TLT ROKR adapters add the ability to tilt and shift these legendary lenses on your system giving you even more control of your images.

Mirrorless cameras aren't only revolutionary because of their compact size; they're even more versatile for mounting lenses than their full-sized counterparts! Whether you're shooting digitally or on film, Fotodiox offers the world's largest selection of lens adapters with strong support for mirrorless camera platforms with hundreds of options for mounting both modern and vintage lenses. Mix camera/lens platforms or reinvigorate vintage glass; our adapters deliver infinity focus, manual aperture control, and a sturdy build for lasting quality.

10 Degrees of Tilt, 20mm of Shift, 360° of Rotation

The Fotodiox Pro TLT ROKR adapters allow for a 10mm shift left and right as well as the ability to tilt 10 degrees one way for perspective correction. The tilt functionality of the TLT ROKR allows for distortion control and the ability to experiment with creative effects. The tilt correction will also allow for greater compositional control by allowing the separation of objects within the same plane. This will help to highlight the key items in the composition without the need to rearrange or rethink your setup.

The shift functionality can be used to eliminate the convergence of vertical lines, know as keystoning, when photographing tall subjects such as buildings. Utilizing both tilt and shift provides new levels of technical control. The addition of 360 degree rotating mechanism allows for tilt or shift in any direction desired. The simple mechanism will allow you to adjust tilt and shift in landscape orientation and rotate 90 degrees to achieve the same correction in portrait with no further adjustments.

High-Tolerance Construction for Demanding Professionals

Fotodiox employs professional photographers in every aspect of development and design to create products that are built to last. The Pro line of adapters is crafted to withstand the rigors and demands of the professional photographer. Fotodiox Pro adapters feature all-metal, no plastic construction to create a secure connection between your glass and camera that will not degrade over time, keeping the lens-camera connection secure with every use. All Fotodiox products are backed by our 24-month Fotodiox Manufacturer Warranty.

Precise, Secure Fit, No Play, Gap or Wiggling

The Fotodiox Pro line of adapters is crafted in Fotodiox’s factory with excellence in mind. We use chrome plated brass mounts for enhanced durability and reliability, as well as an internal spring system that mimics the native camera body to hold the lens tight to the adapter. Our adapters are manufactured with precise tolerances, providing a solid, gap free, no wiggle connection for stress free use. No adjustments needed! Fotodiox adapters are meant to be taken off and put back on your camera as much as needed while remaining as precise as the day you bought them. Infinity Focus or Beyond Guaranteed.

• • This is a manual adapter, so lens functions that rely on electronic communication with the camera body (autofocus, AE metering, image stabilization, etc.) will be disrupted.
• • All lenses will focus at least to infinity, some may just focus a little past. So if your lens is not in focus when the focusing ring is set to the infinity mark, this is due to how Focal Flange Distance (FFD) works and how we must compensate for all lenses of its type made over the years with the differences in tolerance. Visually focusing using the viewfinder or camera screen is the best way to ensure proper focus, not the distance markings as they may not match up properly.
• • Some cameras need to be set a certain way to work with our adapters or you may get a message such as 'Error Lens Not Attached - Check lens'. Please check the support articles on the Fotodiox Knowledge Base for possible solutions on a variety of camera brands.
• • 'Focus-By-Wire' lenses (such as Canon's STM or Nikons AF-P) requires power to engage the manual focus rings on the lens, since manual lens mount adapters do not power the lens, those lenses will not be able to focus.
• • Set your exposure manually or meter using your camera's Aperture Priority (stop-down) mode.
• • If your lens does not have a manual aperture control ring, the lens aperture will revert to its default position, which depending on the lens is either stopped down to its largest f-stop or opened up to its smallest f-stop.
• • All pictures are for illustration purposes only. Actual product may vary slightly due to ongoing improvements in design.
